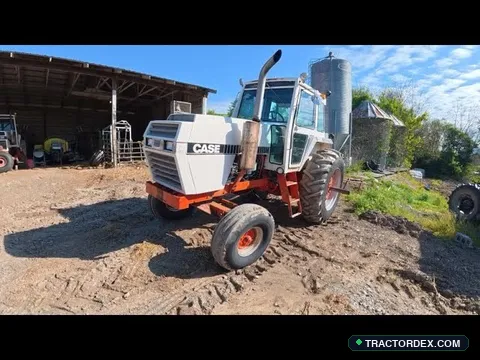

Case 2390

Traduction française indisponible ; contenu anglais affiché.

Années de production: 1979–1983 • Usine d’assemblage: Racine, Wisconsin, USA

Puissance moteur
178 HP
PDF : 160.72 ch
Cylindrée
8.3 L
Moteur 6 cylindres
Entraînement et châssis
2WD
Partial power shift (12F/3R)
Poids en ordre de marche
N/A
—

Sources et preuves par champ

Cette fiche importée ne contient pas encore de preuves au niveau des champs.

Case 2390
VLM Verified Authentic
Case 2390

Ask TractorDex AI Copilot About 2390

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Row-Crop / Mid-Range Field
Global Tractor Fleet Power SpectrumTop 43% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
21.4 HP/L
Turbocharged
Traction Ratio
—
Agile transport & crop care
PTO Efficiency
90%
160.72 PTO HP rated
Hydraulic Flow
Standard
Auxiliary implement ports

Caractéristiques du moteur et de la puissance

Modèle du moteur
J.I. Case
Carburant
Diesel
Puissance nominale
178 hp
Rated PTO Power
160.72 hp (Case specification)
Drawbar Power @ Rated Engine Speed
137.72 hp (Nebraska OECD Test 2218)
Cylindres
6
Cylindrée
8.3 L (504 ci)
Alésage / course
4.625x5.00 inches 117 x 127 mm
Régime nominal
2100 RPM
Capacité d’huile moteur
N/A
Capacité de liquide de refroidissement
44 qts (~41.6 L)

Maintenance picks for the 2390

Filters, oil and common wear parts for this model.

Caractéristiques de transmission et de châssis

Type de transmission
Partial power shift (12F/3R)
Rapports (avant / arrière)
12 avant / 3 arrière
Système d’entraînement
2WD
Empattement
104 in
Pneu avant
11.00-16
Pneu arrière
18.4-38
Débit hydraulique
N/A
Attelage arrière
III
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Case 2390.

Overloaded / Wheel Slip Alert(201%)
CAD DRAFT SCHEMATIC • High-Speed Compact Disk Harrow
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 8 MPH201% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")178 HP◄ 11,733 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 250.3 HPWIDTH / SIZE: 28 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)28 ft Width
12 ft WidthDefault: 3050 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"7"
Target Operating Field Speed8.0 mph (12.9 km/h)
6 mphRated: 8 mph10.5 mph
Engine Power Demand vs Rated Output357.6 HP / 178 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
11,733 lbs
Drawbar Power
250.3 HP
Target Slip
8% - 12%
Axle Ballast Balance (2WD Standard Utility )Calibrated for High-Speed Compact Disk Harrow (115 lbs/HP standard)
Target: 20,470 lbs
Front Axle: 28%Rear Axle: 72%
2,600 kg (5,732 lbs)6,685 kg (14,738 lbs)
Ballast Adjustment vs Base:+3,560 lbs (1,615 kg)
Hourly Diesel Burn
8.2 gal/h
31 L/hr (est. $32/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (357.6 HP) exceeds rated power (178 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Tractor is currently light for this heavy draft tool. Add ~1615 kg (3,560 lbs) ballast to prevent tire slip and premature wear.

Plages de numéros de série archivées (Référence catalogue)

6 années de production
Année de productionN° de série initialN° de série finalUsine d’assemblage
1978#8,835,443#8,840,000Racine, Wisconsin, USA
1979#8,840,001Fin de sérieRacine, Wisconsin, USA
1980#9,901,001#9,910,024Racine, Wisconsin, USA
1981#9,910,025#9,918,829Racine, Wisconsin, USA
1982#9,918,830#9,924,699Racine, Wisconsin, USA
1983#9,924,700Fin de sérieRacine, Wisconsin, USA

Instant Used Market Valuation Projector

Algorithmic resale estimate for Case 2390 (1979)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$7,981
Basis: 178 HP • 47 yrs old
Auction / Wholesale
$6,544 – $7,343
Dealer Retail Asking
$8,380 – $9,418
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$7,582
Year 2028
$7,203
Year 2029
$6,843

Direct Segment Rivals & Showdowns

Head-to-head match-ups calibrated by horsepower and era

International Harvester+27 HP
5488
205 HP
Deere+22 HP
4840
200 HP
International Harvester+22 HP
6788
200 HP

Looking for a used Case 2390?

Browse live listings and auction results near you.

Case

USA • 137 Models

Founded in 1842 by Jerome Increase Case, the J. I. Case Threshing Machine Company emerged as a pioneering force in agricultural machinery during the 19th century. The company gained early prominence by manufacturing steam engines, including portable engines and traction engines, which were crucial for mechanizing agriculture and construction in the United States. Alongside its steam engine innovations, Case became a leading producer of threshing machines and harvesting equipment, establishing itself as a cornerstone of American agricultural mechanization. By the early 20th century, Case expanded into the tractor market, becoming one of the largest tractor manufacturers globally. The company's commitment to quality and innovation earned it a reputation for robust and reliable machinery, serving both agricultural and construction sectors. In the mid-20th century, Case shifted its primary focus to construction equipment while maintaining a strong presence in agriculture. A pivotal moment in its history occurred in the 1980s when Case was acquired by Tenneco, leading to the 1985 merger with International Harvester's agricultural equipment division. This merger resulted in the formation of Case IH, a powerhouse brand that combined the legacies of two iconic agricultural machinery manufacturers. The new entity continued to innovate, introducing advanced technologies and expanding its global footprint.
