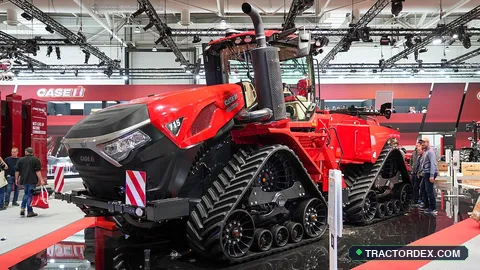

CaseIH Steiger 715 Quadtrac
Traduction française indisponible ; contenu anglais affiché.
Années de production: 2024 • Usine d’assemblage: Fargo, North Dakota, USA
Sources et preuves par champ
Cette fiche importée ne contient pas encore de preuves au niveau des champs.
Ask TractorDex AI Copilot About Steiger 715 Quadtrac
Instant technical consultation powered by heavy machinery knowledge
Engineering & Capability Benchmark
Specific output, tractive ratio, and segment percentile
Caractéristiques du moteur et de la puissance
- Modèle du moteur
- FPT Cursor 16
- Carburant
- Diesel
- Puissance nominale
- 715 hp
- Maximum Power (Peak)
- 767.3 hp
- Rated PTO Power
- 529.6 hp (CaseIH specification)
- Cylindres
- 6
- Cylindrée
- 15.9 L (970 ci)
- Alésage / course
- 5.55x6.69 inches 141 x 170 mm
- Régime nominal
- 2100 RPM
- Capacité d’huile moteur
- N/A
- Capacité de liquide de refroidissement
- N/A
Maintenance picks for the Steiger 715 Quadtrac
Filters, oil and common wear parts for this model.
Caractéristiques de transmission et de châssis
- Type de transmission
- Full power shift (17F/2R)
- Rapports (avant / arrière)
- 17 avant / 2 arrière
- Système d’entraînement
- Tracks (4-Track)
- Empattement
- 154 in
- Pneu avant
- N/A
- Pneu arrière
- N/A
- Débit hydraulique
- N/A
- Attelage arrière
- IVN
Implement Draft & Ballast Matcher
Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for CaseIH Steiger 715 Quadtrac.
Theoretical draft formula suggests 96,525 lbs, but manufacturer verified maximum ballasted limit (GVWR) is 72,000 lbs. Exceeding this limit risks structural frame or track roller failure.
Optimal engine load (97%). Tractive efficiency is peaked within standard 8% - 12% slip window.
Tractor is currently light for this heavy draft tool. Add ~4899 kg (10,800 lbs) ballast to prevent tire slip and premature wear.
Target ballast is capped at 72,000 lbs by verified manufacturer factory limit (GVWR). Do not add excess ballast beyond this limit to avoid structural frame or track undercarriage failure.
Instant Used Market Valuation Projector
Algorithmic resale estimate for CaseIH Steiger 715 Quadtrac (2024)
Direct Segment Rivals & Showdowns
Head-to-head match-ups calibrated by horsepower and era
Looking for a used CaseIH Steiger 715 Quadtrac?
Browse live listings and auction results near you.
Comparer des machines similaires
CaseIH
USA • 469 Models
Case IH is a globally renowned agricultural machinery brand with a rich heritage in tractor manufacturing. The brand's origins trace back to 1985 when the Tennaco Corporation, which had acquired J.I. Case in 1967, merged with the tractor operations of International Harvester (IH). This strategic merger led to the creation of Case IH, combining the strengths of both legacy brands. The new entity focused on leveraging the robust engineering of the IH tractor line while phasing out the larger models in favor of the more versatile Case designs. This marked a significant turning point in the agricultural machinery industry, as Case IH emerged as a powerhouse in the tractor market. In 1999, Case IH took another monumental step by merging with New Holland to form CNH Global (now known as CNH Industrial), further solidifying its position as a leader in agricultural equipment. This merger allowed for expanded research and development capabilities, leading to the introduction of innovative technologies and a broader product range. Today, Case IH continues to operate as a key brand under CNH Industrial, offering a comprehensive lineup of agricultural machinery that includes advanced tractors, combine harvesters, and precision farming solutions. The brand is celebrated for its commitment to innovation, quality, and performance, with a legacy that includes iconic models like the Steiger series, which set new standards for power and efficiency in the industry.
