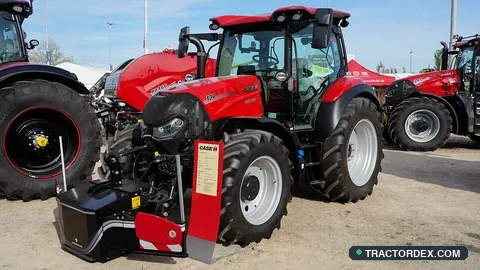

CaseIH Vestrum 130

Traduction française indisponible ; contenu anglais affiché.

Années de production: 2020 • Usine d’assemblage: Racine, Wisconsin, USA

Puissance moteur
138.1 HP
PDF : 111 ch
Cylindrée
4.5 L
Moteur 4 cylindres
Entraînement et châssis
4WD
Continuously-variable transmission (24-speed)
Poids en ordre de marche
5,851 kg
12,900 lbs

Sources et preuves par champ

Cette fiche importée ne contient pas encore de preuves au niveau des champs.

CaseIH Vestrum 130
VLM Verified Authentic
CaseIH Vestrum 130

Ask TractorDex AI Copilot About Vestrum 130

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Row-Crop / Mid-Range Field
Global Tractor Fleet Power SpectrumTop 53% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
30.7 HP/L
Turbocharged
Traction Ratio
42.4 kg/HP
Heavy ballast for draft pull
PTO Efficiency
80%
111 PTO HP rated
Hydraulic Flow
Standard
Auxiliary implement ports

Caractéristiques du moteur et de la puissance

Modèle du moteur
FPT
Carburant
Diesel
Puissance nominale
138.1 hp
Rated PTO Power
111 hp (CaseIH specification)
Cylindres
4
Cylindrée
4.5 L (273.7 ci)
Alésage / course
4.094x5.197 inches 104 x 132 mm
Régime nominal
2200 RPM
Capacité d’huile moteur
N/A
Capacité de liquide de refroidissement
N/A

Maintenance picks for the Vestrum 130

Filters, oil and common wear parts for this model.

Caractéristiques de transmission et de châssis

Type de transmission
Continuously-variable transmission (24-speed)
Rapports (avant / arrière)
24 avant
Système d’entraînement
4WD
Empattement
98 in
Pneu avant
380/85R24
Pneu arrière
460/85R34
Débit hydraulique
N/A
Attelage arrière
II
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for CaseIH Vestrum 130.

High Draft Working Zone(96%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH96% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")138.1 HP◄ 5,563 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 103.8 HPWIDTH / SIZE: 32 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)32 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output133.1 HP / 138.1 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
5,563 lbs
Drawbar Power
103.8 HP
Target Slip
8% - 12%
Axle Ballast Balance (MFWD / Mechanical Front Assist )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 13,810 lbs
Front Axle: 38%Rear Axle: 62%
2,380 kg (5,248 lbs)3,884 kg (8,562 lbs)
Ballast Adjustment vs Base:+910 lbs (413 kg)
Hourly Diesel Burn
5.8 gal/h
22 L/hr (est. $22/h)
Hydraulic Fan Status
Standard Draw
No fan req

Optimal engine load (96%). Tractive efficiency is peaked within standard 8% - 12% slip window.

Instant Used Market Valuation Projector

Algorithmic resale estimate for CaseIH Vestrum 130 (2020)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$89,505
Basis: 138.1 HP • 6 yrs old
Auction / Wholesale
$73,394 – $82,345
Dealer Retail Asking
$93,980 – $105,616
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$85,030
Year 2028
$80,778
Year 2029
$76,739
