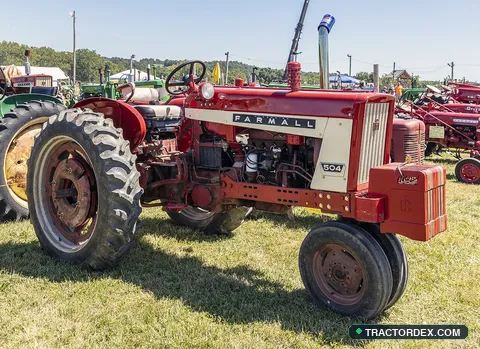

Farmall 504
Traduction française indisponible ; contenu anglais affiché.
Années de production: 1961–1968
Sources et preuves par champ
Cette fiche importée ne contient pas encore de preuves au niveau des champs.
Ask TractorDex AI Copilot About 504
Instant technical consultation powered by heavy machinery knowledge
Engineering & Capability Benchmark
Specific output, tractive ratio, and segment percentile
Caractéristiques du moteur et de la puissance
- Modèle du moteur
- International Harvester D-188
- Carburant
- Gasoline
- Puissance nominale
- 51 hp
- Rated PTO Power
- 46.2 hp (Farmall specification)
- Drawbar Power @ Rated Engine Speed
- 40.41 hp (Nebraska OECD Test 2218)
- Cylindres
- 4
- Cylindrée
- 2.5 L (152.1 ci)
- Alésage / course
- 3.375x4.25 inches 86 x 108 mm
- Régime nominal
- 2200 RPM
- Capacité d’huile moteur
- 5 qts (~4.7 L)
- Capacité de liquide de refroidissement
- 16 qts (~15.1 L)
Maintenance picks for the 504
Oil capacity 5 qts — match the filter before you drain.
Caractéristiques de transmission et de châssis
- Type de transmission
- Unsynchronized gear (10F/2R)
- Rapports (avant / arrière)
- 10 avant / 2 arrière
- Système d’entraînement
- 2WD
- Empattement
- 90 in
- Pneu avant
- 6.00-16
- Pneu arrière
- 12.4-38
- Débit hydraulique
- 19 GPM
- Attelage arrière
- I
Implement Draft & Ballast Matcher
Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Farmall 504.
Engine demand (83.4 HP) exceeds rated power (51 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.
Plages de numéros de série archivées (Référence catalogue)
| Année de production | N° de série initial | N° de série final | Usine d’assemblage |
|---|---|---|---|
| 1961 | #501 | #809 | Usine non précisée |
| 1962 | #810 | #6,999 | Usine non précisée |
| 1963 | #7,000 | #7,731 | Usine non précisée |
| 1964 | #7,732 | #10,695 | Usine non précisée |
| 1965 | #10,696 | #13,595 | Usine non précisée |
| 1966 | #13,596 | #15,112 | Usine non précisée |
| 1967 | #15,113 | #16,114 | Usine non précisée |
| 1968 | #16,115 | Fin de série | Usine non précisée |
