McCormick-Deering WD-9

Traduction française indisponible ; contenu anglais affiché.

Années de production: 1940–1954

Puissance moteur
46 HP
—
Cylindrée
5.5 L
Moteur 4 cylindres
Entraînement et châssis
2WD
Gear (5F/1R)
Poids en ordre de marche
3,016 kg
6,650 lbs

Sources et preuves par champ

Cette fiche importée ne contient pas encore de preuves au niveau des champs.

McCormick-Deering WD-9
VLM Verified Authentic
1/4
Photo: © Acroterion via Wikimedia CommonsCC BY-SA 4.0

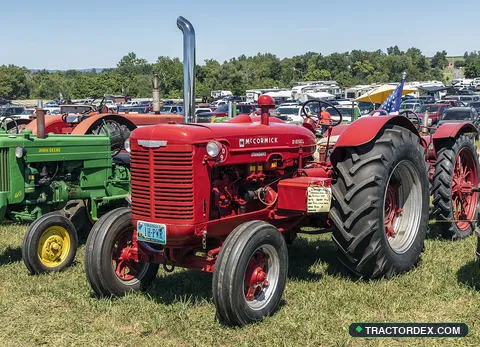

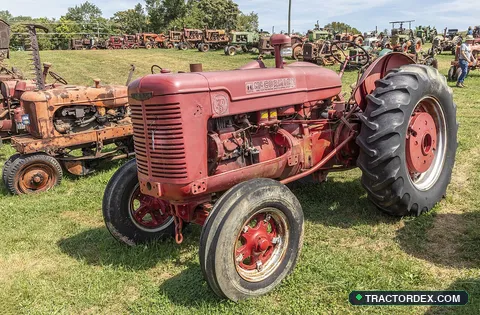

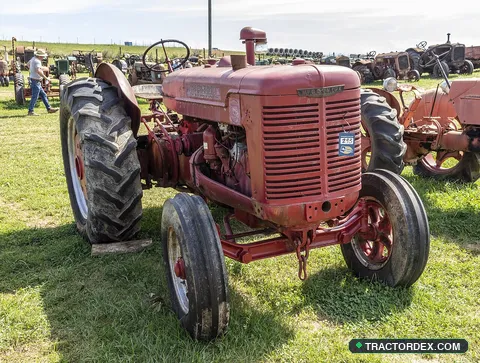

Verified Perspective Gallery (4 views)1 / 4

Ask TractorDex AI Copilot About WD-9

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Compact / Sub-Compact Yard
Global Tractor Fleet Power SpectrumTop 82% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
8.4 HP/L
Aspiration: Unknown
Traction Ratio
65.6 kg/HP
Heavy ballast for draft pull
PTO Efficiency
—
Mechanical driveline
Hydraulic Flow
Standard
Auxiliary implement ports

Caractéristiques du moteur et de la puissance

Modèle du moteur
International Harvester
Carburant
Diesel
Puissance nominale
46 hp
Rated PTO Power
N/A (McCormick-Deering specification)
Drawbar Power @ Rated Engine Speed
42.57 hp (Nebraska OECD Test 2218)
Cylindres
4
Cylindrée
5.5 L (334.5 ci)
Alésage / course
4.40x5.50 inches 112 x 140 mm
Régime nominal
1500 RPM
Capacité d’huile moteur
N/A
Capacité de liquide de refroidissement
44 qts (~41.6 L)

Maintenance picks for the WD-9

Filters, oil and common wear parts for this model.

Caractéristiques de transmission et de châssis

Type de transmission
Gear (5F/1R)
Rapports (avant / arrière)
5 avant / 1 arrière
Système d’entraînement
2WD
Empattement
N/A
Pneu avant
30-6
Pneu arrière
48-12
Débit hydraulique
N/A
Attelage arrière
N/A
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for McCormick-Deering WD-9.

Overloaded / Wheel Slip Alert(181%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH181% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")46 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output83.4 HP / 46 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (2WD Standard Utility )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 4,600 lbs
Front Axle: 28%Rear Axle: 72%
584 kg (1,288 lbs)1,502 kg (3,312 lbs)
Ballast Adjustment vs Base:-2,050 lbs (-930 kg)
Hourly Diesel Burn
2.1 gal/h
7.9 L/hr (est. $8/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (83.4 HP) exceeds rated power (46 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Plages de numéros de série archivées (Référence catalogue)

14 années de production
Année de productionN° de série initialN° de série finalUsine d’assemblage
1940#501#577Usine non précisée
1941#578#2,992Usine non précisée
1942#2,993#3,650Usine non précisée
1943#3,651#5,393Usine non précisée
1944#5,394#11,458Usine non précisée
1945#11,459#17,288Usine non précisée
1946#17,289#22,713Usine non précisée
1947#22,714#29,206Usine non précisée
1948#29,207#36,158Usine non précisée
1949#36,159#45,550Usine non précisée
1950#45,551#51,738Usine non précisée
1951#51,739#59,406Usine non précisée
1952#59,407#64,013Usine non précisée
1953#64,014Fin de sérieUsine non précisée

Instant Used Market Valuation Projector

Algorithmic resale estimate for McCormick-Deering WD-9 (1940)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$2,077
Basis: 46 HP • 86 yrs old
Auction / Wholesale
$1,703 – $1,911
Dealer Retail Asking
$2,181 – $2,451
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$1,973
Year 2028
$1,874
Year 2029
$1,781

Direct Segment Rivals & Showdowns

Head-to-head match-ups calibrated by horsepower and era

Cletrac+7 HP
BD
53 HP
Case+4 HP
L
50 HP
Cletrac+4 HP
DG
50 HP

Looking for a used McCormick-Deering WD-9?

Browse live listings and auction results near you.

McCormick-Deering

USA • 42 Models

McCormick-Deering was a prominent brand in agricultural machinery during the early 20th century, closely associated with International Harvester. The brand's origins trace back to Cyrus McCormick, who revolutionized farming with the invention of the first successful mechanical reaper in 1831. This innovation laid the groundwork for what would eventually become International Harvester, a conglomerate formed from the merger of McCormick Harvesting Machine Company and other entities. In 1923, International Harvester introduced the McCormick-Deering brand to market its new line of standard (wide) front tractors, including the popular 10-20 and 15-30 models. These tractors were designed to meet the demands of American and international farmers, providing reliable and powerful machinery for a variety of agricultural tasks. The McCormick-Deering name adorned tractors and machinery for the next three decades, becoming synonymous with durability and innovation in the agricultural sector. However, by the mid-20th century, the brand was phased out as International Harvester consolidated its product lines under the International name. Today, McCormick-Deering is remembered as a significant chapter in the history of agricultural machinery, representing a period of rapid technological advancement and the transition to mechanized farming.
