Multi-model comparison
Side-by-side tractor comparison
Compare technical specifications, horsepower ratings, hydraulic capacities, and dimensions across all tractor models.
Head-to-Head Arena Spotlight
Direct technical match-up between flagship models
ARCHIVE SPEC2WD
40HP
TH
Archived Specification Record
VS
+15.0%
46 HP

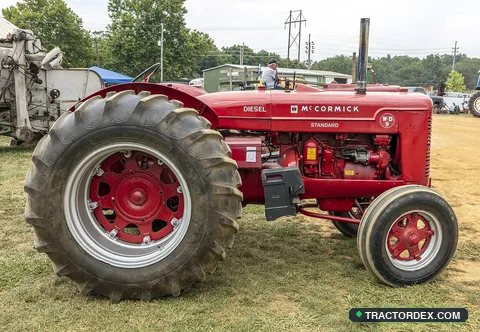

Quick Takeaways:⚡ Rated Power: McCormick-Deering WD-9 (+6.0 HP / +15.0%)🛢️ Displacement: McCormick-Deering WD-9 (+2.2 L)
Model overview
2 selected
ARCHIVE SPEC2WD
40HP
TH
Archived Specification Record
Thieman Harvester
Theiman
Catalog archiveEngine and power
Rated horsepower
40 HP
46 HP+6.0 HP
PTO horsepower
—
—
Engine displacement
3.3 L
5.5 L+2.2 L
Cylinders
4 cylinders
4 cylinders
Fuel type
Gasoline
Diesel
Transmission and drive
Drive system
2WD
2WD
Transmission type
Gear (3F/1R)
Gear (5F/1R)
Forward / reverse gears
3 fwd / 1 rev
5 fwd / 1 rev
Weight and capacities
Operating weight
—
3,016 kg
Hydraulic total flow
—
—
ASABE Field Implement Capacity Matchup
Max Subsoiler (12" depth)
1 Shanks0
1 Shanks0
Max Disk Harrow (8 mph)
6 ft (2 m)0
6 ft (2 m)0
Max Air Seeder (5.5 mph)
15 ft (5 m)0
15 ft (5 m)0
Target Ballast & Balance
Heavy-draft standard (30/70 for 2WD, 40/60 for MFWD, 55/45 for 4WD)
5,800 lbs
30% Front / 70% Rear
6,670 lbs
30% Front / 70% Rear
Est. Fuel Burn (75% Load)
1.4 gal/h (5.3 L/h)
1.7 gal/h (6.4 L/h)
Provenance and serial decoders
Production years
1936–1942
1940–1954
Assembly factory
—
—
