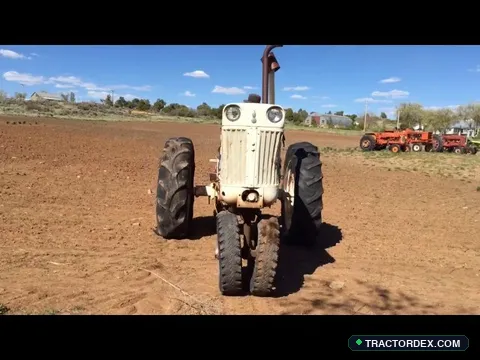

Case 801-B

Production years: 1958–1960 • Assembly plant: Racine, Wisconsin, USA

Compare with other modelsValue machine
Engine horsepower
60 HP
—
Displacement
4.4 L
4-cylinder engine
Drive and chassis
2WD
Torque converter (8F/2R)
Operating weight
3,084 kg
6,800 lbs

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

Case 801-B
VLM Verified Authentic
Case 801-B

Ask TractorDex AI Copilot About 801-B

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Utility & Farmyard Workhorse
Global Tractor Fleet Power SpectrumTop 77% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
13.6 HP/L
Aspiration: Unknown
Traction Ratio
51.4 kg/HP
Heavy ballast for draft pull
PTO Efficiency
—
Mechanical driveline
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
J.I. Case
Fuel type
Diesel
Rated horsepower
60 hp
Rated PTO Power
N/A (Case specification)
Drawbar Power @ Rated Engine Speed
51.38 hp (Nebraska OECD Test 2218)
Cylinders
4
Displacement
4.4 L (267 ci)
Bore / stroke
4.125x5.00 inches 105 x 127 mm
Rated RPM
1800 RPM
Crankcase oil capacity
N/A
Coolant capacity
N/A

Maintenance picks for the 801-B

Filters, oil and common wear parts for this model.

Transmission and chassis specifications

Transmission type
Torque converter (8F/2R)
Gears (forward / reverse)
8 forward / 2 reverse
Drive system
2WD
Wheelbase
101.75 in
Front tire
6.00-16
Rear tire
15.5-38
Hydraulic flow
N/A
Rear hitch
N/A
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Case 801-B.

Overloaded / Wheel Slip Alert(139%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH139% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")60 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output83.4 HP / 60 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (2WD Standard Utility )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 6,000 lbs
Front Axle: 28%Rear Axle: 72%
762 kg (1,680 lbs)1,960 kg (4,320 lbs)
Ballast Adjustment vs Base:-800 lbs (-363 kg)
Hourly Diesel Burn
2.8 gal/h
10.6 L/hr (est. $11/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (83.4 HP) exceeds rated power (60 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Instant Used Market Valuation Projector

Algorithmic resale estimate for Case 801-B (1958)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$2,703
Basis: 60 HP • 68 yrs old
Auction / Wholesale
$2,216 – $2,487
Dealer Retail Asking
$2,838 – $3,190
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$2,568
Year 2028
$2,439
Year 2029
$2,317
