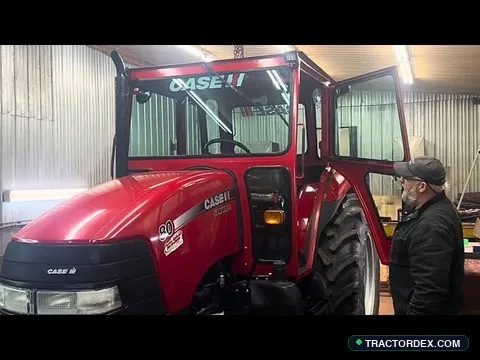

CaseIH Farmall 80
Production years: 2008–2010 • Assembly plant: Basildon, Essex, England
Sources and field evidence
Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.
Ask TractorDex AI Copilot About Farmall 80
Instant technical consultation powered by heavy machinery knowledge
Engineering & Capability Benchmark
Specific output, tractive ratio, and segment percentile
Engine and power specifications
- Engine model
- FPT
- Fuel type
- Diesel
- Rated horsepower
- 72 hp
- Rated PTO Power
- 72.1 hp (CaseIH specification)
- Drawbar Power @ Rated Engine Speed
- 59.7 hp (Nebraska OECD Test 2218)
- Cylinders
- 4
- Displacement
- 3.2 L (195 ci)
- Bore / stroke
- 3.898x4.094 inches 99 x 104 mm
- Rated RPM
- 2500 RPM
- Crankcase oil capacity
- N/A
- Coolant capacity
- N/A
Maintenance picks for the Farmall 80
Filters, oil and common wear parts for this model.
Transmission and chassis specifications
- Transmission type
- Mechanical shuttle (20F/12R)
- Gears (forward / reverse)
- 20 forward / 12 reverse
- Drive system
- 4WD
- Wheelbase
- 87 in
- Front tire
- N/A
- Rear tire
- N/A
- Hydraulic flow
- 21.7 GPM
- Rear hitch
- II
Implement Draft & Ballast Matcher
Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for CaseIH Farmall 80.
Engine demand (74.9 HP) exceeds rated power (72 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.
Instant Used Market Valuation Projector
Algorithmic resale estimate for CaseIH Farmall 80 (2008)
Direct Segment Rivals & Showdowns
Head-to-head match-ups calibrated by horsepower and era
Looking for a used CaseIH Farmall 80?
Browse live listings and auction results near you.
Compare similar machines
CaseIH
USA • 469 Models
Case IH is a globally renowned agricultural machinery brand with a rich heritage in tractor manufacturing. The brand's origins trace back to 1985 when the Tennaco Corporation, which had acquired J.I. Case in 1967, merged with the tractor operations of International Harvester (IH). This strategic merger led to the creation of Case IH, combining the strengths of both legacy brands. The new entity focused on leveraging the robust engineering of the IH tractor line while phasing out the larger models in favor of the more versatile Case designs. This marked a significant turning point in the agricultural machinery industry, as Case IH emerged as a powerhouse in the tractor market. In 1999, Case IH took another monumental step by merging with New Holland to form CNH Global (now known as CNH Industrial), further solidifying its position as a leader in agricultural equipment. This merger allowed for expanded research and development capabilities, leading to the introduction of innovative technologies and a broader product range. Today, Case IH continues to operate as a key brand under CNH Industrial, offering a comprehensive lineup of agricultural machinery that includes advanced tractors, combine harvesters, and precision farming solutions. The brand is celebrated for its commitment to innovation, quality, and performance, with a legacy that includes iconic models like the Steiger series, which set new standards for power and efficiency in the industry.
