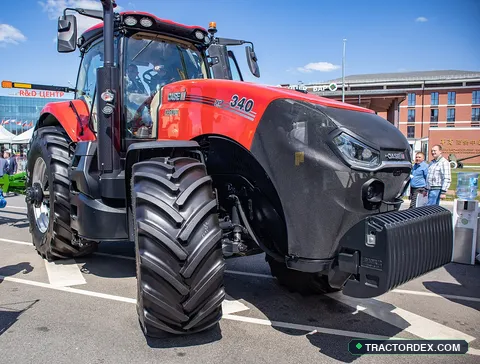

CaseIH Magnum 340
Production years: 2011–2024 • Assembly plant: Racine, Wisconsin, USA
Sources and field evidence
Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.
Ask TractorDex AI Copilot About Magnum 340
Instant technical consultation powered by heavy machinery knowledge
Engineering & Capability Benchmark
Specific output, tractive ratio, and segment percentile
Engine and power specifications
- Engine model
- FPT
- Fuel type
- Diesel
- Rated horsepower
- 374 hp
- Rated PTO Power
- 337.37 hp (CaseIH specification)
- Drawbar Power @ Rated Engine Speed
- 256.51 hp (Nebraska OECD Test 2218)
- Cylinders
- 6
- Displacement
- 8.7 L (531 ci)
- Bore / stroke
- 4.606x5.315 inches 117 x 135 mm
- Rated RPM
- 2000 RPM
- Crankcase oil capacity
- N/A
- Coolant capacity
- N/A
Maintenance picks for the Magnum 340
Filters, oil and common wear parts for this model.
Transmission and chassis specifications
- Transmission type
- Full power shift (23F/4R)
- Gears (forward / reverse)
- 23 forward / 4 reverse
- Drive system
- 4WD
- Wheelbase
- 120 in
- Front tire
- N/A
- Rear tire
- N/A
- Hydraulic flow
- 44 GPM
- Rear hitch
- optional
Implement Draft & Ballast Matcher
Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for CaseIH Magnum 340.
Theoretical draft formula suggests 50,490 lbs. Official manufacturer GVWR is unrecorded for this catalog entry, so target weight is constrained to an engineering structural estimate (~135% of base operating weight) to prevent chassis overload.
Engine demand (441.5 HP) exceeds rated power (374 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.
Tractor is currently light for this heavy draft tool. Add ~3841 kg (8,469 lbs) ballast to prevent tire slip and premature wear.
Target ballast is capped at 36,699 lbs based on structural engineering estimate (~135% base weight; official manufacturer GVWR unrecorded). Avoid adding excess ballast beyond this benchmark to protect axle bearings and chassis.
