Caterpillar 5-Ton

Production years: 1925–1926

Compare with other modelsValue machine
Engine horsepower
44 HP
—
Displacement
7 L
4-cylinder engine
Drive and chassis
Tracks (Crawler)
Gear (3F/1R)
Operating weight
4,263 kg
9,400 lbs

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

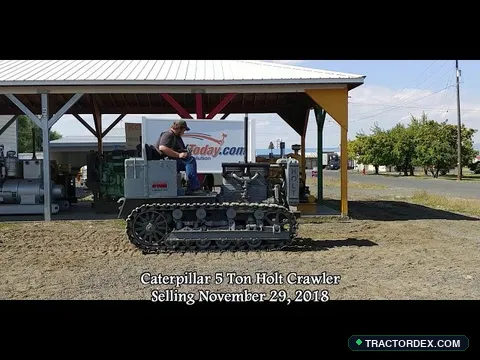

Caterpillar 5-Ton
VLM Verified Authentic
Caterpillar 5-Ton

Ask TractorDex AI Copilot About 5-Ton

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Compact / Sub-Compact Yard
Global Tractor Fleet Power SpectrumTop 82% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
6.3 HP/L
Aspiration: Unknown
Traction Ratio
96.9 kg/HP
Heavy ballast for draft pull
PTO Efficiency
—
Mechanical driveline
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
Caterpillar
Fuel type
Gasoline
Rated horsepower
44 hp
Rated PTO Power
N/A (Caterpillar specification)
Cylinders
4
Displacement
7 L (425 ci)
Bore / stroke
4.75x6.00 inches 121 x 152 mm
Rated RPM
1050 RPM
Crankcase oil capacity
10 qts (~9.5 L)
Coolant capacity
30 qts (~28.4 L)

Maintenance picks for the 5-Ton

Oil capacity 10 qts — match the filter before you drain.

Transmission and chassis specifications

Transmission type
Gear (3F/1R)
Gears (forward / reverse)
3 forward / 1 reverse
Drive system
Tracks (Crawler)
Wheelbase
N/A
Front tire
N/A
Rear tire
N/A
Hydraulic flow
N/A
Rear hitch
N/A
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Caterpillar 5-Ton.

Overloaded / Wheel Slip Alert(160%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH160% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")44 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output70.4 HP / 44 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (Twin Track Rubber Belt )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 4,400 lbs
Front Axle: 62%Rear Axle: 38%
1,237 kg (2,728 lbs)758 kg (1,672 lbs)
Ballast Adjustment vs Base:-5,000 lbs (-2,268 kg)
Hourly Gasoline Burn
2.9 gal/h
11 L/hr (est. $10/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (70.4 HP) exceeds rated power (44 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Tractor exceeds target ballast by 2268 kg. Consider removing wheel weights to reduce soil compaction.

Instant Used Market Valuation Projector

Algorithmic resale estimate for Caterpillar 5-Ton (1925)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$1,989
Basis: 44 HP • 101 yrs old
Auction / Wholesale
$1,631 – $1,830
Dealer Retail Asking
$2,088 – $2,347
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$1,890
Year 2028
$1,795
Year 2029
$1,705
