TractorDex
TractorDexIndex
Cub CadetUSACatalog archive

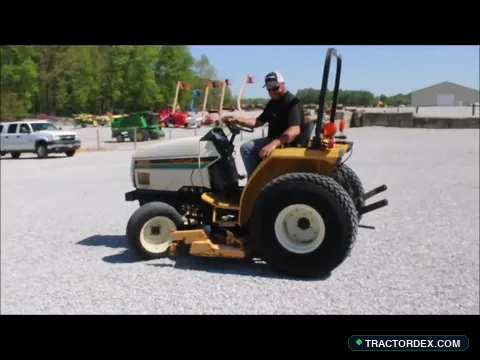

Cub Cadet 7232

Production years: 1996–1997

Compare with other modelsValue machine
Engine horsepower
23 HP
PTO: 20 HP
Displacement
1.2 L
3-cylinder engine
Drive and chassis
2WD
Partially-synchronized gear (9F/3R)
Operating weight
1,084 kg
2,391 lbs

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

Cub Cadet 7232
VLM Verified Authentic
Cub Cadet 7232

Ask TractorDex AI Copilot About 7232

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Compact / Sub-Compact Yard
Global Tractor Fleet Power SpectrumTop 91% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
19.2 HP/L
Aspiration: Unknown
Traction Ratio
47.1 kg/HP
Heavy ballast for draft pull
PTO Efficiency
87%
20 PTO HP rated
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
Mitsubishi K3G
Fuel type
Diesel
Rated horsepower
23 hp
Rated PTO Power
20 hp (Cub Cadet specification)
Cylinders
3
Displacement
1.2 L (75.4 ci)
Bore / stroke
3.228x3.071 inches 82 x 78 mm
Rated RPM
2500 RPM
Crankcase oil capacity
3.7 qts (~3.5 L)
Coolant capacity
5.6 qts (~5.3 L)

Maintenance picks for the 7232

Oil capacity 3.7 qts — match the filter before you drain.

Transmission and chassis specifications

Transmission type
Partially-synchronized gear (9F/3R)
Gears (forward / reverse)
9 forward / 3 reverse
Drive system
2WD
Wheelbase
65 in
Front tire
5.00-15
Rear tire
11.2-24
Hydraulic flow
N/A
Rear hitch
I
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Cub Cadet 7232.

Overloaded / Wheel Slip Alert(363%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH363% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")23 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output83.4 HP / 23 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (2WD Standard Utility )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 2,300 lbs
Front Axle: 28%Rear Axle: 72%
292 kg (644 lbs)751 kg (1,656 lbs)
Ballast Adjustment vs Base:-91 lbs (-41 kg)
Hourly Diesel Burn
1.1 gal/h
4.2 L/hr (est. $4/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (83.4 HP) exceeds rated power (23 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Instant Used Market Valuation Projector

Algorithmic resale estimate for Cub Cadet 7232 (1996)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$3,684
Basis: 23 HP • 30 yrs old
Auction / Wholesale
$3,021 – $3,389
Dealer Retail Asking
$3,868 – $4,347
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$3,500
Year 2028
$3,325
Year 2029
$3,159

Direct Segment Rivals & Showdowns

Head-to-head match-ups calibrated by horsepower and era

Looking for a used Cub Cadet 7232?

Browse live listings and auction results near you.

Cub Cadet

USA • 43 Models

Cub Cadet is an iconic American brand renowned for its lawn and garden equipment, with a rich history that dates back to its founding as a division of International Harvester (IH) in 1960. The brand was established to produce small tractors and equipment for residential and commercial use, quickly gaining a reputation for innovation and quality. The first Cub Cadet model, introduced in 1961, was a revolutionary product that set new standards for residential lawn tractors with its advanced engineering and durable construction. In 1981, International Harvester sold the Cub Cadet line to MTD Products, a significant turning point that marked the brand's transition from agricultural machinery to a leading producer of consumer and commercial outdoor power equipment. Under MTD's ownership, Cub Cadet expanded its product offerings and solidified its position as a market leader in the lawn and garden industry. A notable chapter in Cub Cadet's history was its collaboration with Mitsubishi, which led to the importation of compact tractors into North America under the Cub Cadet brand in 1993. This partnership underscored the brand's commitment to delivering versatile and reliable equipment. In 2006, MTD entered into an agreement with Yanmar to sell compact tractors under the Cub Cadet Yanmar brand, further expanding the brand's reach and product diversity. However, this partnership evolved, and in 2011, Yanmar assumed full control over the tractors, leading to the discontinuation of the Cub Cadet name on compact tractors.

View Full Cub Cadet Lineup
