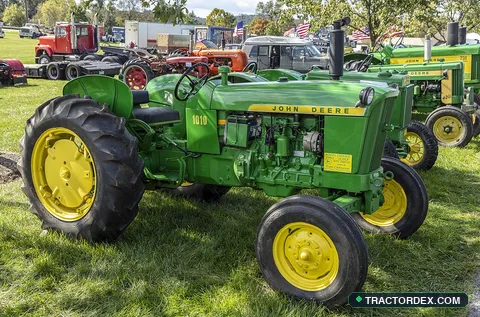

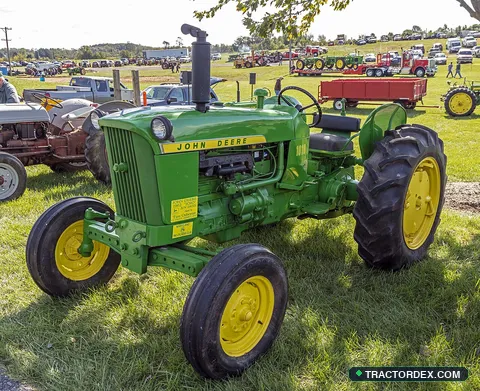

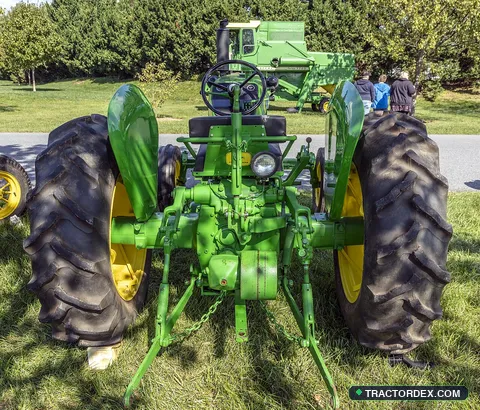

Deere 1010
Production years: 1960–1965 • Assembly plant: Augusta, Georgia, USA
Sources and field evidence
Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.
Ask TractorDex AI Copilot About 1010
Instant technical consultation powered by heavy machinery knowledge
Engineering & Capability Benchmark
Specific output, tractive ratio, and segment percentile
Engine and power specifications
- Engine model
- John Deere
- Fuel type
- Gasoline
- Rated horsepower
- 40 hp
- Rated PTO Power
- 36.13 hp (Deere specification)
- Drawbar Power @ Rated Engine Speed
- 30 hp (Nebraska OECD Test 2218)
- Cylinders
- 4
- Displacement
- 1.9 L (115.5 ci)
- Bore / stroke
- 3.50x3.00 inches 89 x 76 mm
- Rated RPM
- 2500 RPM
- Crankcase oil capacity
- N/A
- Coolant capacity
- 11 qts (~10.4 L)
Maintenance picks for the 1010
Filters, oil and common wear parts for this model.
Transmission and chassis specifications
- Transmission type
- Sliding gear (5F/1R)
- Gears (forward / reverse)
- 5 forward / 1 reverse
- Drive system
- 2WD
- Wheelbase
- 82.5 in
- Front tire
- 5.00-15
- Rear tire
- 10-34
- Hydraulic flow
- N/A
- Rear hitch
- I
Implement Draft & Ballast Matcher
Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Deere 1010.
Engine demand (83.4 HP) exceeds rated power (40 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.
Catalog archival serial-number ranges
| Production year | Starting serial # | Ending serial # | Assembly plant |
|---|---|---|---|
| 1960 | #10,001 | #13,691 | Augusta, Georgia, USA |
| 1961 | #13,692 | #23,629 | Augusta, Georgia, USA |
| 1962 | #23,630 | #32,187 | Augusta, Georgia, USA |
| 1963 | #32,188 | #43,899 | Augusta, Georgia, USA |
| 1964 | #43,900 | #53,721 | Augusta, Georgia, USA |
| 1965 | #53,722 | End of run | Augusta, Georgia, USA |
