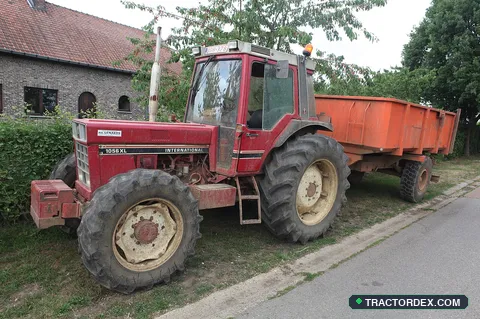

International Harvester 1056

Production years: 1982–1985

Compare with other modelsValue machine
Engine horsepower
105 HP
PTO: 92 HP
Displacement
5.9 L
6-cylinder engine
Drive and chassis
4WD
Two-speed power shift (16F/8R)
Operating weight
N/A
—

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

International Harvester 1056
VLM Verified Authentic
International Harvester 1056

Ask TractorDex AI Copilot About 1056

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Utility & Farmyard Workhorse
Global Tractor Fleet Power SpectrumTop 63% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
17.8 HP/L
Aspiration: Unknown
Traction Ratio
—
Agile transport & crop care
PTO Efficiency
88%
92 PTO HP rated
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
International Harvester D-358
Fuel type
Diesel
Rated horsepower
105 hp
Rated PTO Power
92 hp (International Harvester specification)
Cylinders
6
Displacement
5.9 L (358 ci)
Bore / stroke
3.875x5.0625 inches 98 x 129 mm
Rated RPM
2300 RPM
Crankcase oil capacity
12.7 qts (~12.0 L)
Coolant capacity
25.4 qts (~24.0 L)

Maintenance picks for the 1056

Oil capacity 12.7 qts — match the filter before you drain.

Transmission and chassis specifications

Transmission type
Two-speed power shift (16F/8R)
Gears (forward / reverse)
16 forward / 8 reverse
Drive system
4WD
Wheelbase
101.9 in
Front tire
7.50-18
Rear tire
18.4R34
Hydraulic flow
N/A
Rear hitch
II
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for International Harvester 1056.

High Draft Working Zone(95%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH95% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")105 HP◄ 4,172 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 77.9 HPWIDTH / SIZE: 24 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)24 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output99.9 HP / 105 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
4,172 lbs
Drawbar Power
77.9 HP
Target Slip
8% - 12%
Axle Ballast Balance (MFWD / Mechanical Front Assist )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 10,500 lbs
Front Axle: 38%Rear Axle: 62%
1,810 kg (3,990 lbs)2,953 kg (6,510 lbs)
Ballast Adjustment vs Base:+525 lbs (238 kg)
Hourly Diesel Burn
4.4 gal/h
16.7 L/hr (est. $17/h)
Hydraulic Fan Status
Standard Draw
No fan req

Optimal engine load (95%). Tractive efficiency is peaked within standard 8% - 12% slip window.

Instant Used Market Valuation Projector

Algorithmic resale estimate for International Harvester 1056 (1982)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$5,003
Basis: 105 HP • 44 yrs old
Auction / Wholesale
$4,102 – $4,603
Dealer Retail Asking
$5,253 – $5,904
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$4,753
Year 2028
$4,515
Year 2029
$4,289
