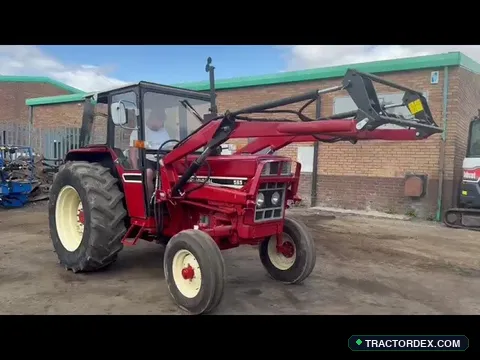

International Harvester 585

Production years: 1981–1985

Compare with other modelsValue machine
Engine horsepower
58.9 HP
PTO: 52.7 HP
Displacement
3.4 L
4-cylinder engine
Drive and chassis
4WD
Synchromesh (16F/8R)
Operating weight
2,900 kg
6,394 lbs

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

International Harvester 585
VLM Verified Authentic
International Harvester 585

Ask TractorDex AI Copilot About 585

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Utility & Farmyard Workhorse
Global Tractor Fleet Power SpectrumTop 77% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
17.3 HP/L
Aspiration: Unknown
Traction Ratio
49.2 kg/HP
Heavy ballast for draft pull
PTO Efficiency
89%
52.7 PTO HP rated
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
International Harvester D-206
Fuel type
Diesel
Rated horsepower
58.9 hp
Rated PTO Power
52.7 hp (International Harvester specification)
Cylinders
4
Displacement
3.4 L (206 ci)
Bore / stroke
3.874x4.373 inches 98 x 111 mm
Rated RPM
2300 RPM
Crankcase oil capacity
N/A
Coolant capacity
N/A

Maintenance picks for the 585

Filters, oil and common wear parts for this model.

Transmission and chassis specifications

Transmission type
Synchromesh (16F/8R)
Gears (forward / reverse)
16 forward / 8 reverse
Drive system
4WD
Wheelbase
85 in
Front tire
7.50-18
Rear tire
13.6-38
Hydraulic flow
N/A
Rear hitch
II
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for International Harvester 585.

Overloaded / Wheel Slip Alert(127%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH127% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")58.9 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output74.9 HP / 58.9 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (MFWD / Mechanical Front Assist )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 5,890 lbs
Front Axle: 38%Rear Axle: 62%
1,015 kg (2,238 lbs)1,657 kg (3,652 lbs)
Ballast Adjustment vs Base:-504 lbs (-229 kg)
Hourly Diesel Burn
2.7 gal/h
10.2 L/hr (est. $10/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (74.9 HP) exceeds rated power (58.9 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Instant Used Market Valuation Projector

Algorithmic resale estimate for International Harvester 585 (1981)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$2,639
Basis: 58.9 HP • 45 yrs old
Auction / Wholesale
$2,164 – $2,428
Dealer Retail Asking
$2,771 – $3,114
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$2,507
Year 2028
$2,382
Year 2029
$2,263
