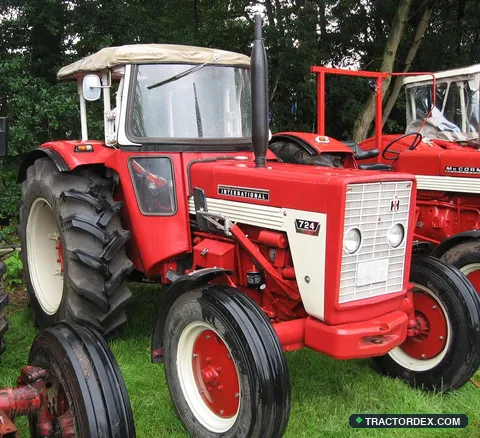

International Harvester 724

Production years: 1969–1974 • Assembly plant: Neuss, North Rhine-Westphalia, Germany

Compare with other modelsValue machine
Engine horsepower
67 HP
—
Displacement
3.9 L
4-cylinder engine
Drive and chassis
4WD
Partial power shift (12F/4R)
Operating weight
2,840 kg
6,262 lbs

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

International Harvester 724
VLM Verified Authentic
International Harvester 724

Ask TractorDex AI Copilot About 724

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Utility & Farmyard Workhorse
Global Tractor Fleet Power SpectrumTop 75% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
17.2 HP/L
Aspiration: Unknown
Traction Ratio
42.4 kg/HP
Heavy ballast for draft pull
PTO Efficiency
—
Mechanical driveline
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
International Harvester D-239
Fuel type
Diesel
Rated horsepower
67 hp
Rated PTO Power
N/A (International Harvester specification)
Cylinders
4
Displacement
3.9 L (238.65 ci)
Bore / stroke
3.875x5.06 inches 98 x 129 mm
Rated RPM
2200 RPM
Crankcase oil capacity
8.4 qts (~7.9 L)
Coolant capacity
N/A

Maintenance picks for the 724

Oil capacity 8.4 qts — match the filter before you drain.

Transmission and chassis specifications

Transmission type
Partial power shift (12F/4R)
Gears (forward / reverse)
12 forward / 4 reverse
Drive system
4WD
Wheelbase
83.5 in
Front tire
6.00-16
Rear tire
14-34
Hydraulic flow
N/A
Rear hitch
II
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for International Harvester 724.

Overloaded / Wheel Slip Alert(112%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH112% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")67 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output74.9 HP / 67 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (MFWD / Mechanical Front Assist )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 6,700 lbs
Front Axle: 38%Rear Axle: 62%
1,155 kg (2,546 lbs)1,884 kg (4,154 lbs)
Ballast Adjustment vs Base:+438 lbs (199 kg)
Hourly Diesel Burn
3.1 gal/h
11.7 L/hr (est. $12/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (74.9 HP) exceeds rated power (67 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Instant Used Market Valuation Projector

Algorithmic resale estimate for International Harvester 724 (1969)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$3,012
Basis: 67 HP • 57 yrs old
Auction / Wholesale
$2,470 – $2,771
Dealer Retail Asking
$3,163 – $3,554
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$2,861
Year 2028
$2,718
Year 2029
$2,582

Direct Segment Rivals & Showdowns

Head-to-head match-ups calibrated by horsepower and era

County+10 HP
764
77 HP
White+10 HP
1470
77 HP
Barreiros+10 HP
R-545
77 HP

Looking for a used International Harvester 724?

Browse live listings and auction results near you.

International Harvester

USA • 253 Models

The International Harvester Company (IH or International) was a pioneering American industrial powerhouse founded in 1902 through the merger of five leading agricultural equipment manufacturers, including the McCormick Harvesting Machine Company and Deering Harvester Company. This strategic consolidation created one of the largest agricultural machinery manufacturers in the world, with an immediate impact on the industry. International Harvester quickly became renowned for its innovative Farmall tractors, which revolutionized farming practices with their versatility and efficiency. The company's product line expanded to include the iconic Cub Cadet tractors, as well as the consolidated McCormick-Deering line that carried forward the legacy of its founding companies. Beyond its dominance in the agricultural sector, International Harvester was a major player in commercial vehicles, producing the popular Scout and Travelall automobiles, along with a wide range of trucks. The company's diverse portfolio also included lawn and garden equipment and household appliances, making it a household name across America. However, the 1980s brought significant challenges as the company faced financial difficulties. In response, International Harvester began divesting its divisions, starting with the sale of its construction equipment division to Dresser Industries in 1982. The pivotal moment came in 1984 when the farm equipment division was acquired by Tenneco's subsidiary, Case Corporation, leading to the formation of the Case IH brand. Today, Case IH is part of CNH Industrial, while the European division lives on as McCormick Tractors, owned by Italy's ARGO SpA. By 1986, International Harvester had transformed into Navistar International, focusing exclusively on trucks and engines.
