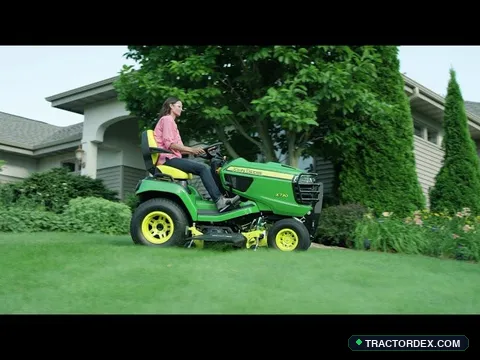

John Deere lawn tractors X730
Mower Deck: 60" deck • Assembly plant: Horicon, Wisconsin, USA
Sources and field evidence
Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.
Ask TractorDex AI Copilot About X730
Instant technical consultation powered by heavy machinery knowledge
Engineering & Capability Benchmark
Specific output, tractive ratio, and segment percentile
Engine and power specifications
- Engine model
- Kawasaki FD750D
- Fuel type
- Gasoline
- Rated horsepower
- 25 hp
- Rated PTO Power
- N/A (John Deere lawn tractors specification)
- Cylinders
- 2
- Displacement
- 0.7 L (45.5 ci)
- Bore / stroke
- 3.07x3.07 inches 78 x 78 mm
- Rated RPM
- N/A
- Crankcase oil capacity
- N/A
- Coolant capacity
- N/A
Maintenance picks for the X730
Filters, oil and common wear parts for this model.
Transmission and chassis specifications
- Transmission type
- Shaft-driven hydrostatic
- Gears (forward / reverse)
- N/A
- Drive system
- 2WD
- Wheelbase
- 54.5 in
- Front tire
- 18x8.50-8
- Rear tire
- 26x12-12
- Hydraulic flow
- N/A
- Rear hitch
- 0 Opt Optional
Implement Draft & Ballast Matcher
Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for John Deere lawn tractors X730.
Theoretical draft formula suggests 2,500 lbs. Official manufacturer GVWR is unrecorded for this catalog entry, so target weight is constrained to an engineering structural estimate (~135% of base operating weight) to prevent chassis overload.
Engine demand (83.4 HP) exceeds rated power (25 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.
Target ballast is capped at 1,165 lbs based on structural engineering estimate (~135% base weight; official manufacturer GVWR unrecorded). Avoid adding excess ballast beyond this benchmark to protect axle bearings and chassis.
Catalog archival serial-number ranges
| Production year | Starting serial # | Ending serial # | Assembly plant |
|---|---|---|---|
| 2013 | #10,001 | #20,000 | Horicon, Wisconsin, USA |
| 2014 | #20,001 | #30,000 | Horicon, Wisconsin, USA |
| 2015 | #30,001 | #40,000 | Horicon, Wisconsin, USA |
| 2016 | #40,001 | #50,000 | Horicon, Wisconsin, USA |
| 2017 | #50,001 | #60,000 | Horicon, Wisconsin, USA |
| 2018 | #60,001 | #70,000 | Horicon, Wisconsin, USA |
| 2019 | #70,001 | #80,000 | Horicon, Wisconsin, USA |
| 2020 | #80,001 | #90,000 | Horicon, Wisconsin, USA |
| 2021 | #90,001 | End of run | Horicon, Wisconsin, USA |
