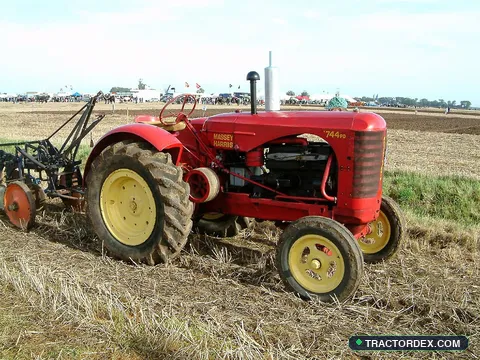

Massey-Harris 744

Production years: 1948–1958

Compare with other modelsValue machine
Engine horsepower
46 HP
—
Displacement
4.7 L
6-cylinder engine
Drive and chassis
2WD
Gear (5F/1R)
Operating weight
N/A
—

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

Massey-Harris 744
VLM Verified Authentic
Massey-Harris 744

Ask TractorDex AI Copilot About 744

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Compact / Sub-Compact Yard
Global Tractor Fleet Power SpectrumTop 82% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
9.8 HP/L
Aspiration: Unknown
Traction Ratio
—
Agile transport & crop care
PTO Efficiency
—
Mechanical driveline
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
Perkins P6
Fuel type
Diesel
Rated horsepower
46 hp
Rated PTO Power
N/A (Massey-Harris specification)
Drawbar Power @ Rated Engine Speed
39 hp (Nebraska OECD Test 2218)
Cylinders
6
Displacement
4.7 L (288 ci)
Bore / stroke
3.50x5.00 inches 89 x 127 mm
Rated RPM
N/A
Crankcase oil capacity
N/A
Coolant capacity
N/A

Maintenance picks for the 744

Filters, oil and common wear parts for this model.

Transmission and chassis specifications

Transmission type
Gear (5F/1R)
Gears (forward / reverse)
5 forward / 1 reverse
Drive system
2WD
Wheelbase
N/A
Front tire
N/A
Rear tire
N/A
Hydraulic flow
N/A
Rear hitch
N/A
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Massey-Harris 744.

Overloaded / Wheel Slip Alert(181%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH181% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")46 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output83.4 HP / 46 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (2WD Standard Utility )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 4,600 lbs
Front Axle: 28%Rear Axle: 72%
584 kg (1,288 lbs)1,502 kg (3,312 lbs)
Ballast Adjustment vs Base:+230 lbs (104 kg)
Hourly Diesel Burn
2.1 gal/h
7.9 L/hr (est. $8/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (83.4 HP) exceeds rated power (46 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Instant Used Market Valuation Projector

Algorithmic resale estimate for Massey-Harris 744 (1948)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$2,075
Basis: 46 HP • 78 yrs old
Auction / Wholesale
$1,702 – $1,909
Dealer Retail Asking
$2,179 – $2,449
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$1,971
Year 2028
$1,873
Year 2029
$1,779

Direct Segment Rivals & Showdowns

Head-to-head match-ups calibrated by horsepower and era

Custom+6 HP
B
52 HP

Looking for a used Massey-Harris 744?

Browse live listings and auction results near you.

Massey-Harris

Canada • 36 Models

Massey-Harris was a pioneering Canadian agricultural machinery manufacturer that emerged from the 1891 merger between the Massey Manufacturing Company and A. Harris, Son & Co., two of Canada's most prominent farm equipment producers. The company quickly established itself as an industry leader, achieving a significant breakthrough with the introduction of the first commercially successful self-propelled combine harvester, the Massey-Harris No. 20, in 1941. This innovation revolutionized harvesting practices worldwide. In 1953, Massey-Harris merged with the Ferguson Company, founded by tractor innovator Harry Ferguson, who had previously worked with Ford. The new entity, Massey Ferguson, became a global powerhouse in the agricultural machinery sector. Over the decades, Massey Ferguson expanded its international footprint, establishing manufacturing facilities and distribution networks across Europe, Asia, and the Americas. The brand became synonymous with reliable and innovative farm equipment, particularly in the tractor and combine harvester segments. In 1994, Massey Ferguson was acquired by AGCO Corporation, a leading global agricultural equipment manufacturer. Under AGCO's ownership, the Massey Ferguson brand continues to thrive, leveraging its rich heritage while integrating modern technologies into its product lines. Today, Massey Ferguson is recognized for its diverse range of agricultural machinery, including tractors, combine harvesters, balers, and hay tools, maintaining its reputation for quality and innovation.

View Full Massey-Harris Lineup
