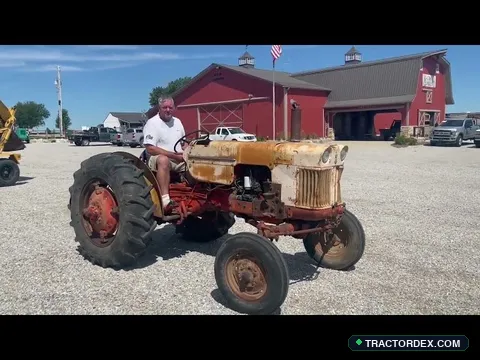

Case 311-B

Production years: 1958–1959 • Assembly plant: Racine, Wisconsin, USA

Compare with other modelsValue machine
Engine horsepower
41 HP
PTO: 37 HP
Displacement
2.4 L
4-cylinder engine
Drive and chassis
2WD
Gear (12F/3R)
Operating weight
1,848 kg
4,076 lbs

Sources and field evidence

Catalog Archive: Baseline specifications compiled from historical manufacturer archives and equipment registries. Laboratory test report verification in progress.

Case 311-B
VLM Verified Authentic
Case 311-B

Ask TractorDex AI Copilot About 311-B

Instant technical consultation powered by heavy machinery knowledge

Engineering & Capability Benchmark

Specific output, tractive ratio, and segment percentile

Compact / Sub-Compact Yard
Global Tractor Fleet Power SpectrumTop 84% of all indexed machinery
Compact (20 HP)Utility (100 HP)Row-Crop (250 HP)Titans (600+ HP)
Specific Output
17.1 HP/L
Aspiration: Unknown
Traction Ratio
45.1 kg/HP
Heavy ballast for draft pull
PTO Efficiency
90%
37 PTO HP rated
Hydraulic Flow
Standard
Auxiliary implement ports

Engine and power specifications

Engine model
J.I. Case
Fuel type
Gasoline
Rated horsepower
41 hp
Rated PTO Power
37 hp (Case specification)
Cylinders
4
Displacement
2.4 L (148 ci)
Bore / stroke
3.375x4.125 inches 86 x 105 mm
Rated RPM
1900 RPM
Crankcase oil capacity
5 qts (~4.7 L)
Coolant capacity
13 qts (~12.3 L)

Maintenance picks for the 311-B

Oil capacity 5 qts — match the filter before you drain.

Transmission and chassis specifications

Transmission type
Gear (12F/3R)
Gears (forward / reverse)
12 forward / 3 reverse
Drive system
2WD
Wheelbase
84.5 in
Front tire
5.50-16
Rear tire
11-28
Hydraulic flow
N/A
Rear hitch
N/A
ASABE EP496 Engineering Matcher

Implement Draft & Ballast Matcher

Simulate draft resistance, drawbar power transfer, and optimal axle weight distribution for Case 311-B.

Overloaded / Wheel Slip Alert(203%)
CAD DRAFT SCHEMATIC • Wide-Span Field Cultivator
SOIL: Medium Tilled LoamDEPTH: 4"SPEED: 7 MPH203% LOAD
SOIL SURFACE (0.0")SUB-SURFACE PLOW PAN (~14")41 HP◄ 3,129 LBS DRAFT4" DEPTH
DRAWBAR DEMAND: 58.4 HPWIDTH / SIZE: 18 ft Width
ASABE D497.7 Tillage Specific Resistance Formula
Implement Size (ft Width)18 ft Width
18 ft WidthDefault: 4270 ft Width
Tillage / Seeding Depth4 inches (10 cm)
2"Target: 4"6"
Target Operating Field Speed7.0 mph (11.3 km/h)
5 mphRated: 7 mph9 mph
Engine Power Demand vs Rated Output83.4 HP / 41 HP Rated
0%55% (Min Load)60-85% (Sweet Spot)100% (Cap)
Draft Force
3,129 lbs
Drawbar Power
58.4 HP
Target Slip
8% - 12%
Axle Ballast Balance (2WD Standard Utility )Calibrated for Wide-Span Field Cultivator (100 lbs/HP standard)
Target: 4,100 lbs
Front Axle: 28%Rear Axle: 72%
521 kg (1,148 lbs)1,339 kg (2,952 lbs)
Ballast Adjustment vs Base:+24 lbs (11 kg)
Hourly Gasoline Burn
2.7 gal/h
10.2 L/hr (est. $9/h)
Hydraulic Fan Status
Standard Draw
No fan req

Engine demand (83.4 HP) exceeds rated power (41 HP). Reduce working speed by 1.0-1.5 mph or reduce working width.

Catalog archival serial-number ranges

2 production years
Production yearStarting serial #Ending serial #Assembly plant
1958#6,095,001#6,120,000Racine, Wisconsin, USA
1959#6,120,001End of runRacine, Wisconsin, USA

Instant Used Market Valuation Projector

Algorithmic resale estimate for Case 311-B (1958)

Full Appraisal Tool
Operating Meter Hours3,200 hrs
Mechanical & Physical Condition
Empirical model calibrated against dealer & auction lots
Estimated Fair Market Value
$1,847
Basis: 41 HP • 68 yrs old
Auction / Wholesale
$1,515 – $1,699
Dealer Retail Asking
$1,939 – $2,179
3-Year Projected Resale Curve~5% annual retention decay
Year 2027
$1,755
Year 2028
$1,667
Year 2029
$1,584

Direct Segment Rivals & Showdowns

Head-to-head match-ups calibrated by horsepower and era

Allis Chalmers+6 HP
HD5
47 HP
CO-OP+6 HP
E4
47 HP
Cockshutt+6 HP
35
47 HP

Looking for a used Case 311-B?

Browse live listings and auction results near you.

Case

USA • 137 Models

Founded in 1842 by Jerome Increase Case, the J. I. Case Threshing Machine Company emerged as a pioneering force in agricultural machinery during the 19th century. The company gained early prominence by manufacturing steam engines, including portable engines and traction engines, which were crucial for mechanizing agriculture and construction in the United States. Alongside its steam engine innovations, Case became a leading producer of threshing machines and harvesting equipment, establishing itself as a cornerstone of American agricultural mechanization. By the early 20th century, Case expanded into the tractor market, becoming one of the largest tractor manufacturers globally. The company's commitment to quality and innovation earned it a reputation for robust and reliable machinery, serving both agricultural and construction sectors. In the mid-20th century, Case shifted its primary focus to construction equipment while maintaining a strong presence in agriculture. A pivotal moment in its history occurred in the 1980s when Case was acquired by Tenneco, leading to the 1985 merger with International Harvester's agricultural equipment division. This merger resulted in the formation of Case IH, a powerhouse brand that combined the legacies of two iconic agricultural machinery manufacturers. The new entity continued to innovate, introducing advanced technologies and expanding its global footprint.
